DIN Y-Strainer

Model:
GL41H
Size:
DN50-DN400
Pressure:
PN10,PN16
Body Materials:
Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze/Brass
Applicable Medium:
Water, oil, steam and other non-corrosive media
Introduction Features Technical Parameters Technical Standard Related Products Inquiry

Product Introduction

Y-strainers are used in commercial and industrial applications, as well as for central water supply systems within the limits of their specifications. They protect systems against malfunction and corrosion damage resulting from the ingress of foreign bodies such as welding beads, sealing materials, metal cuttings and rust etc. This extends the life of the downstream system and prevents early failure.

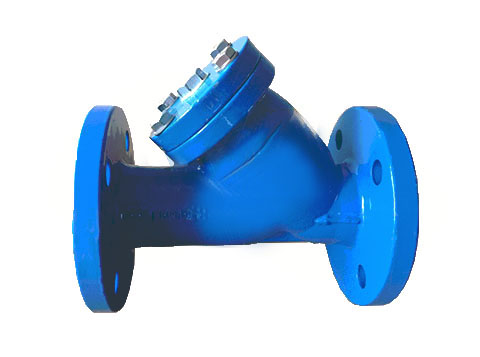

DIN Y-Strainer
DIN Y-Strainer

Product Features


1. modelling beautiful, body reserve pressure hole.
2. easy to use and fast. According to user requirements to cover the screw on the change into ball valve, ball valve outlet drainage pipe, so that you can not open the cover, sewage with pressure.
3. can according to user requirements to provide different filtration precision of mesh. Filter cleaning easy to change.
4. and fluid channel design scientific and reasonable, flow resistance smaller, more traffic, the total area of the mesh is 3 ~ 4 times the size of nominal diameter.

5. telescopic can make the installation more convenient disassembly.

Technical Parameters

DIN Y-Strainer
DN L D D1 D2 b-f Z×Φd L2 L1
15 130 Φ95 Φ65 Φ46 14-2 4-Φ14 43 66
20 150 Φ105 Φ75 Φ56 16-2 4-Φ14 43 66
25 160 Φ115 Φ85 Φ65 16-2 4-Φ14 49 75
32 180 Φ140 Φ100 Φ76 18-2 4-Φ19 53 77
40 200 Φ150 Φ110 Φ84 18-2 4-Φ19 67 90
50 230 Φ165 Φ125 Φ99 20-2 4-Φ19 130 160
65 290 Φ185 Φ145 Φ118 20-2 4-Φ19 160 194
80 310 Φ200 Φ160 Φ132 22-2 8-Φ19 190 225
100 350 Φ220 Φ180 Φ156 24-2 8-Φ19 230 270
125 400 Φ250 Φ210 Φ184 26-2 8-Φ19 270 320
150 480 Φ285 Φ240 Φ211 26-2 8-Φ23 320 373
200 600 Φ340 Φ295 Φ266 30-2 12-Φ23 380 450
250 730 Φ405 Φ355 Φ319 32-2 12-Φ28 440 525
300 850 Φ460 Φ410 Φ370 32-2 12-Φ28 515 608
350 980 Φ520 Φ470 Φ429 36-2 16-Φ28 570 661
400 1100 Φ580 Φ525 Φ480 38-2 16-Φ31 640 739

Technical Standard


1.Face to face according to DIN EN 558-1.
2.Flange End according to EN 1092-1.
3.Pressure test according to EN 12266-1.
